Record Power, CGV336-4-US-PI, CamVac 55L 2000w Vacuum, With Improved 4" Plastic Inlet and Hose

Product Description

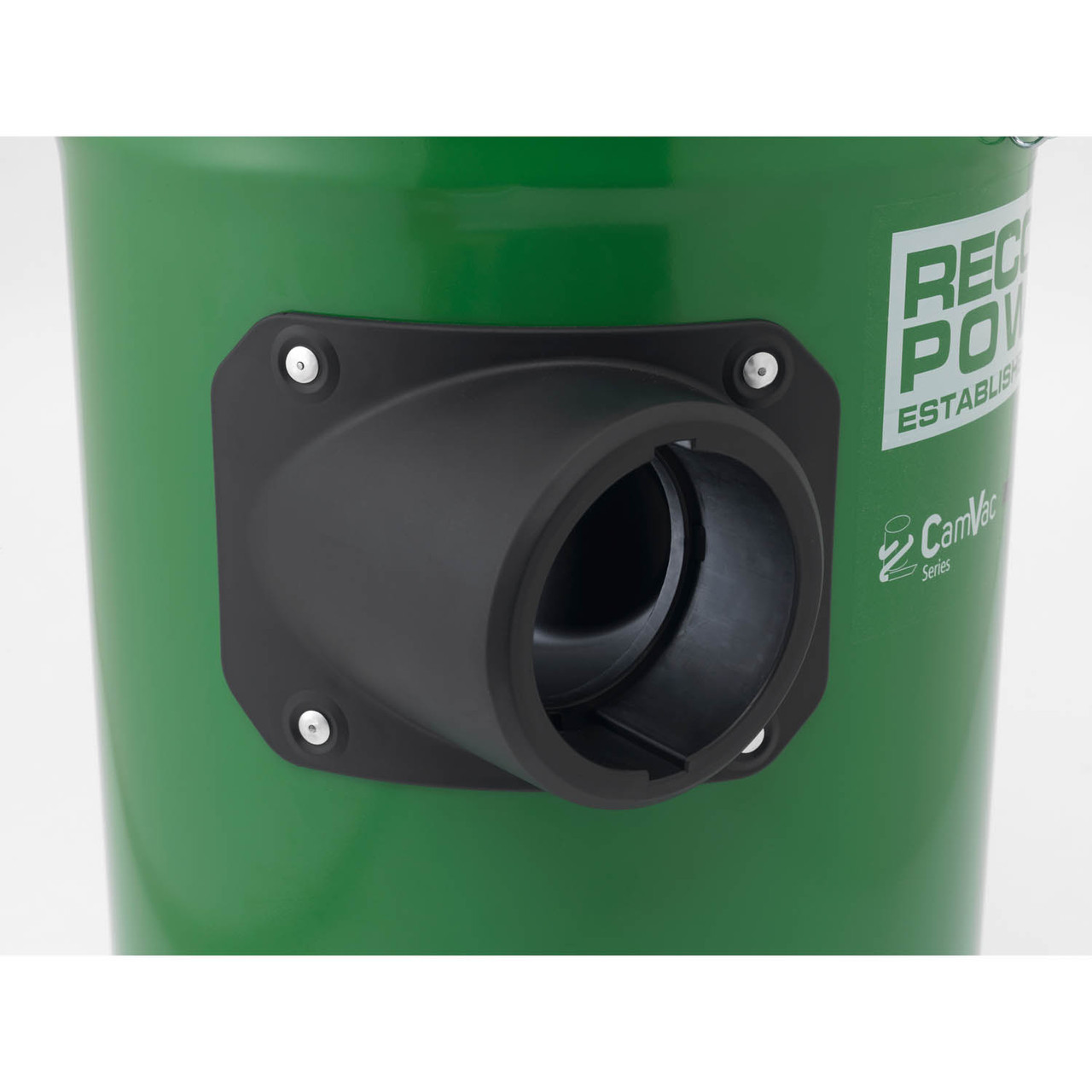

The CGV336 offers an impressive 55 liter (14½ US Gallons) capacity whilst also being very compact. In addition to wood dust and chippings, it can tackle workshop debris, nails, and many other types of waste with ease and features the CamVac triple filtration system for effective treatment of fine particles. The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum. The new inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine. Each machine is supplied with a corresponding bayonet hose fitting, which has a positive, secure and tight fit around the hose.

For all woodworkers, a good dust extraction system is essential. Record Power offers a large range of dust extraction machines and accessories, catering for all workshop extraction needs. CamVac dust extractors feature a high-quality and convenient bayonet-style inlet fitting. This makes connection and disconnection of extraction hose fast, easy, effective and very secure. Machines are supplied as standard with a corresponding bayonet hose fitting, which is designed with great precision to give a secure and tight fit around the extraction hose for connection to the machine inlet.

• NEW and improved! Includes 4" Heavy Duty Plastic Air Inlet
• CamVac machines are probably the quietest High-Pressure-Low-Volume (HPLV) dust extractors available. The acoustic outlet effectively reduces noise during operation, with tests showing sound levels as low as 74 dB on a single motor model.
• When the optional 2 1/2” hose is fitted to the acoustic outlet, this can be reduced to around 68 dB, making them the ideal option if neighborhood noise is a concern.
• When using the optional hose in the acoustic outlet, noise can be reduced even further by directing the open end of the hose outside the workshop, for example through a window.
• The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The extractors filter to as low as 0.5 microns, providing protection against very fine dust.
• All CamVac models feature a unique cyclonic inlet system, which draws the waste around the sides of drum and away from the filters and motors, increasing their lifespan.
• This makes CamVac extractors suitable for collecting coarser items such as wood chippings as well as fine dust, maximizing their versatility and usefulness in the workshop.
• Includes 2 meters long (6 1/2 ft), 100 mm diameter (4 in) Dust Extraction Hose and Easy-Fit Cuff

• Filtration: 0.5 microns
• Air Flow: 162 litres per second (342 CFM)
• Capacity: 55 liters (24 US Gallons)
• Motor: 2000 W (3 HP Total ) - Two 1000W Motors
• Inlet Diameter: 4"
• Weight: 13 kg (29 lbs)
• Size: W 370 x D 412 x H 624 mm (W 14½” x D 16¼” x H 24½”)
• Voltage: 220 V

• Check out the PRODUCT VIDEOS tab above to watch videos related to this product



Record Power has a long and impressive history in the world of woodturning. They offer an unrivaled range of high quality machinery and accessories to cater to all levels of woodturner from the keen novice to demanding professional. Established in Sheffield, the heart of the UK's steel industry, and stretching back over 100 years, Record Power enjoys an enviable reputation for creating high quality tools through many years of experience and unparalleled knowledge in manufacturing and design.




⚠ WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer.  Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.  For more information go to http://www.P65Warnings.ca.gov/fact-sheets/wood-dust
