Product Description
* PLEASE NOTE: THIS ITEM HAS BEEN DISCONITINUED BY THE MANUFACTURER. *
- This item is available from the manufacturer and can be pre-ordered. Please call us for more details.
The large 11-3/4" x 48" table on the OES9138 oscillating edge sander travels a full 8" in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48" x 9-1/2" and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
Features:- Dual dust collection ports
- Dual dust collection ports keep work area clean and extend abrasive belt life
- Heavy-duty oscillating gearbox and shaft for long maintenance-free use
- Hinged guard opens for infinite length sanding
- Large 11-3/4" x 48" front worktable with 8" vertical travel and 45° tilt, includes miter head for angle work
- Large radius end table has 6" vertical travel and 45° tilt for any angle and working height needed
- Oscillates 24 cycles per minute for better finish and longer belt life
- Precision balanced 9" diameter drive drum and 4" diameter rubber coated idler pulley for positive drive and rigid tracking

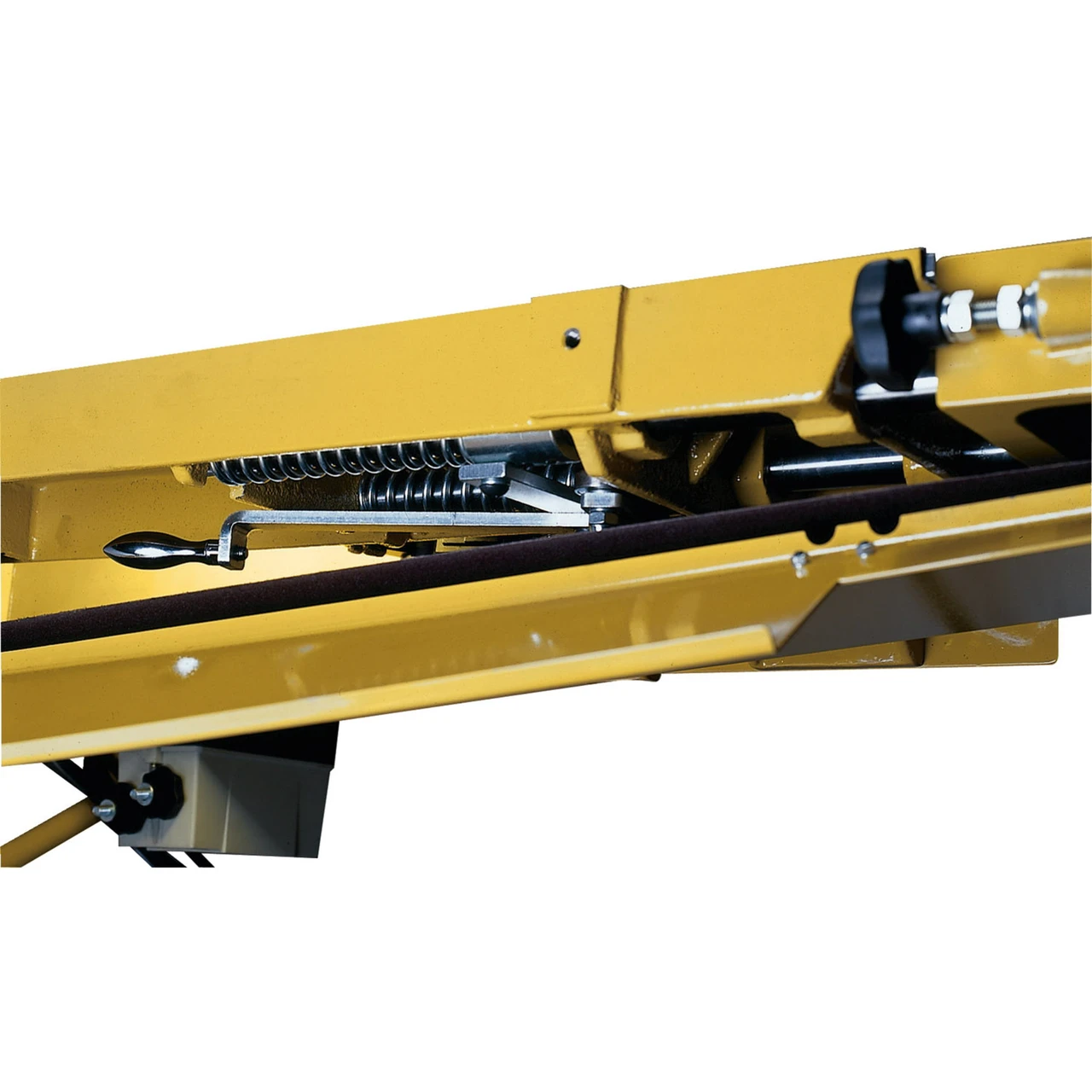

- Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
- Spring loaded, quick release lever makes belt changes quick and easy
- Style (Type) = Oscillating Edge
- Belt Speed (SFPM) = 3,542
- Motor Power (HP) = 3
- Dust Collection Minimum CFM Required (CFM) = 1,100
- Dust Port Outside Diameter (In.) = 4
- Motor Phase = 1
- Overall Dimensions (L x W x H) (In.) = 83 x 32 x 50
- Recommended Circuit Size (Amps.) = 30
- Net Weight (Lbs.) = 800
- Gross Weight (Lbs) = 870
- Height = 0.0000
- Length = 0.0000
- Weight = 870.0000
- Width = 0.0000
- Motor Power (HP) = 3
- Motor Phase = 1
- Motor Voltage (V.) = 230 only
- Prewired Voltage (V.) = 230
- Recommended Circuit Size (Amps.) = 30
- Height = 0.0000
- Length = 0.0000
- Weight = 870.0000
- Width = 0.0000
- Find out more about our JPW Shipping Policy Here
The Woodturning Store is proud to be an authorized Powermatic dealer. Powermatic is an iconic brand of woodworking machinery, getting its start in 1921 in McMinnville, Tennessee and today is a part of JPW Industries, a world leader in tools and machinery for hobbyists, schools and industry. We are a full line dealer for Powermatic, Jet Tools and Wiltons brands and can offer every single product in their lines. Contact us with any questions you may have. We are always happy to help you making the best selection for your needs.
⚠ WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to http://www.P65Warnings.ca.gov/fact-sheets/wood-dust
122224Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
POWERMATIC OES9138 OSCILLATING EDGE SANDER, 3HP 1PH 230V
I am a professional woodworker of 47 years. I was a woodworking machinery technician for Baer Supply Company. Additionally, over the years, I have rebuilt and reconditioned numerous machines from the ground up. I purchased the Powermatic OES9138 Edge Sander in February of 2021. It appears the negative issues that were pointed out in the Amazon reviews have been resolved. Also note that those two 2013 and 2014 reviews were based on the first iteration of the machine. Since then, they have made changes to the machine and that there are two different manuals available, one for the older model and one for the new one. The biggest complaint was evidently a problem with the bottom of the base that is bolted to the black feet. The black feet are now made from wide 3” x 1/8” flat stock. Where the machine is bolted to the black feet and where the round hard rubber levelers are installed in the bottom of the black feet, the metal plate is doubled to ¼”. The weight of the machine is carried by the machine corners and bottom edges, not the right-angle metal flap at the bottom of the base. It sits very solidly. A few clarifications: 1. In Powermatic's promotional material and the instruction manual, it’s states that the oscillation is ¼”. I measured it to be almost 3/8”. The oscillation is unique in that the drive motor does not go up and down, but rather back and forth to create the oscillation. This makes for a much smoother and quieter oscillation. 2. The platen is heavily ribbed cast iron and the two tables are heavily ribbed aluminum. I put a 50" machinist straight edge on the front table and it was within. 002 flatness across both diagonals. 3. Not shown on Powermatic’s website or mentioned in their promotional material is that the bottom of the base acts as a storage cabinet. It has a locking latched door on the back and is large enough to store abrasive belts. I was happy to see this for when I was looking at the machine I thought the base was totally enclosed and what a waste of storage good storage space. A few small negatives: A. The supplied 120# belt is so-so. It’s a nice heavy-duty cloth back belt, but the seam was so bad it was unusable. I expected as much and order a dozen belts from my regular supplier. B. I’ve learned from experience to go over a new machine and check the tightness of every nut, bolt and screw. There were two sets of screws that weren’t properly tightened. It should not have left the factory like that. C. The threaded rod end that controls the tracking post was uneven and course. I removed it and ground a soft crown on it. This too should not have left the factory like this. Even with these minor issues, I've given the machine 5 stars. Is this Oakley, Max, or old Oliver quality? No, but neither is it $10,000. After all is said and done this machine does what it’s supposed to do, and does it with aplomb, precision and without any vibration. I recommend it to any woodworker. There are a number of different machinery companies that make very similar machines. I went with the Powermatic because the couple of times I had issues were their machines, they honored the warranty without questions and shipped the required part out immediately. Also note that on a few of the competitors’ websites, their specifications are loosey-goosey. One says the oscillation is ¾” when asked to double check it, it was actually ¼”. Other states that the tables are cast iron, and this seems near rather implausible. The net weight of their machine is 75 pounds less than the Powermatic. If both tables were cast iron, it would add at least another 150 pounds to the weight coming in closer to 900 to 950 pounds. Moral, ask a lot of questions and then ask them to put a magnet on the tables
