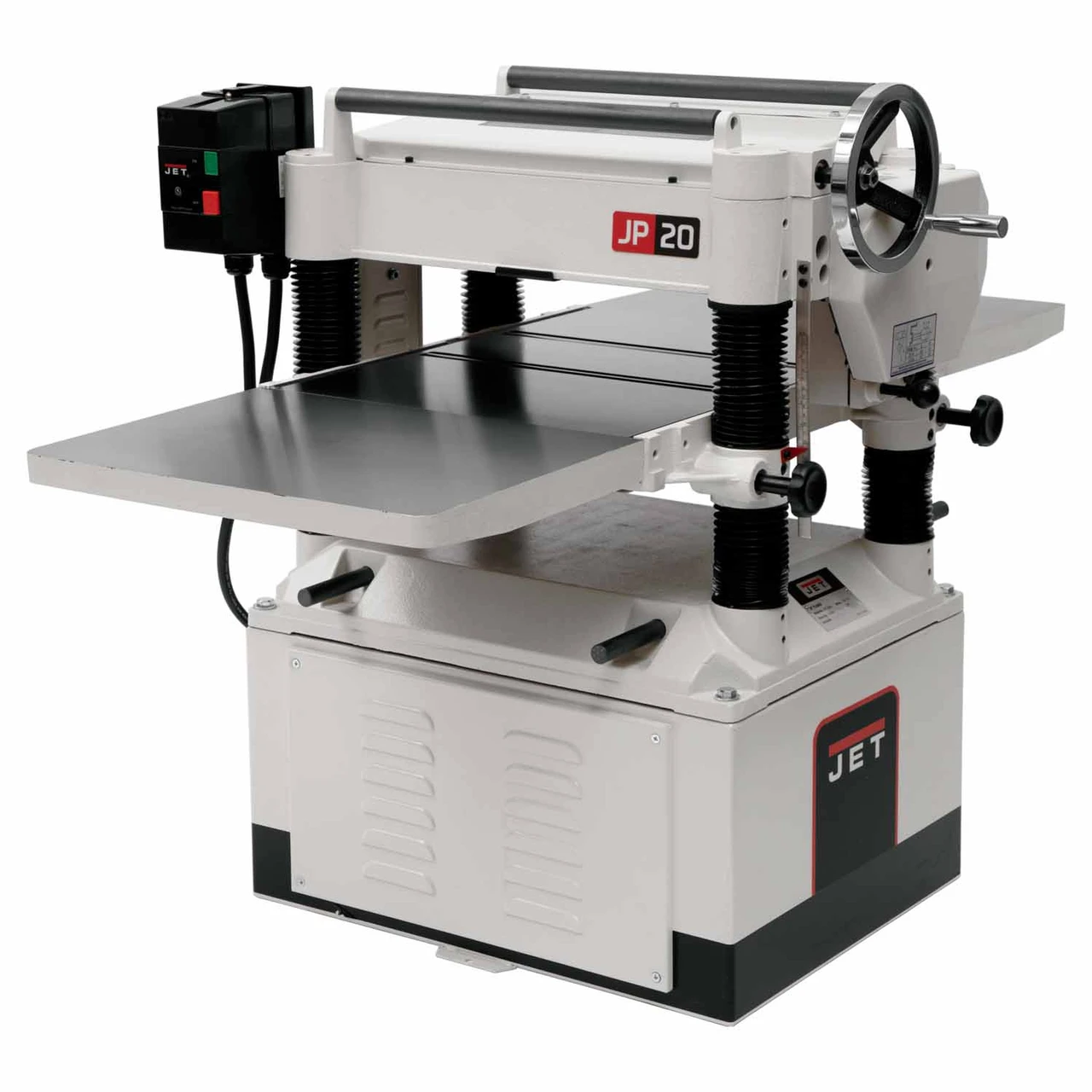

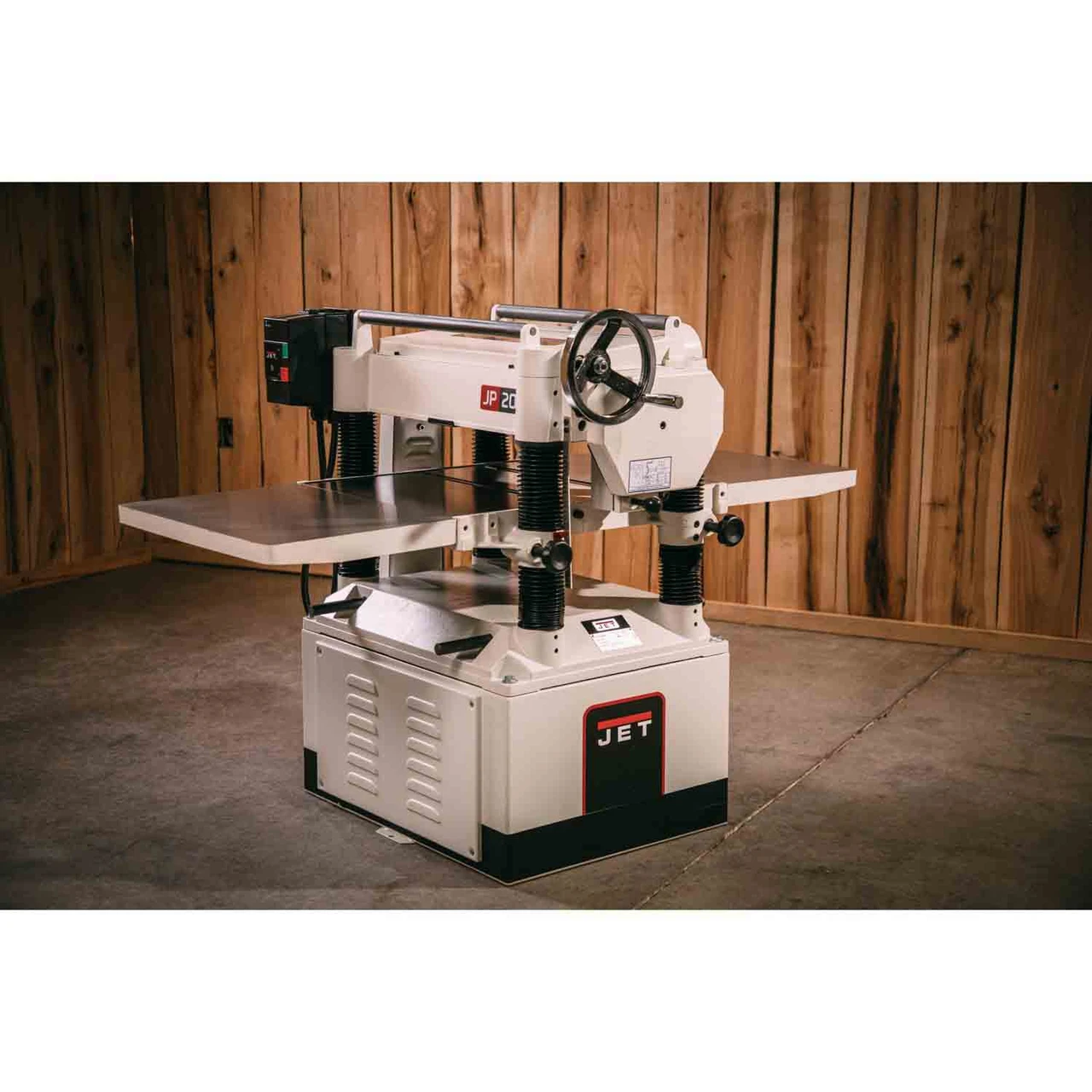

Jet, JWP-208HH, 20" Planer, 5HP 1Ph, Helical Head

Product Description

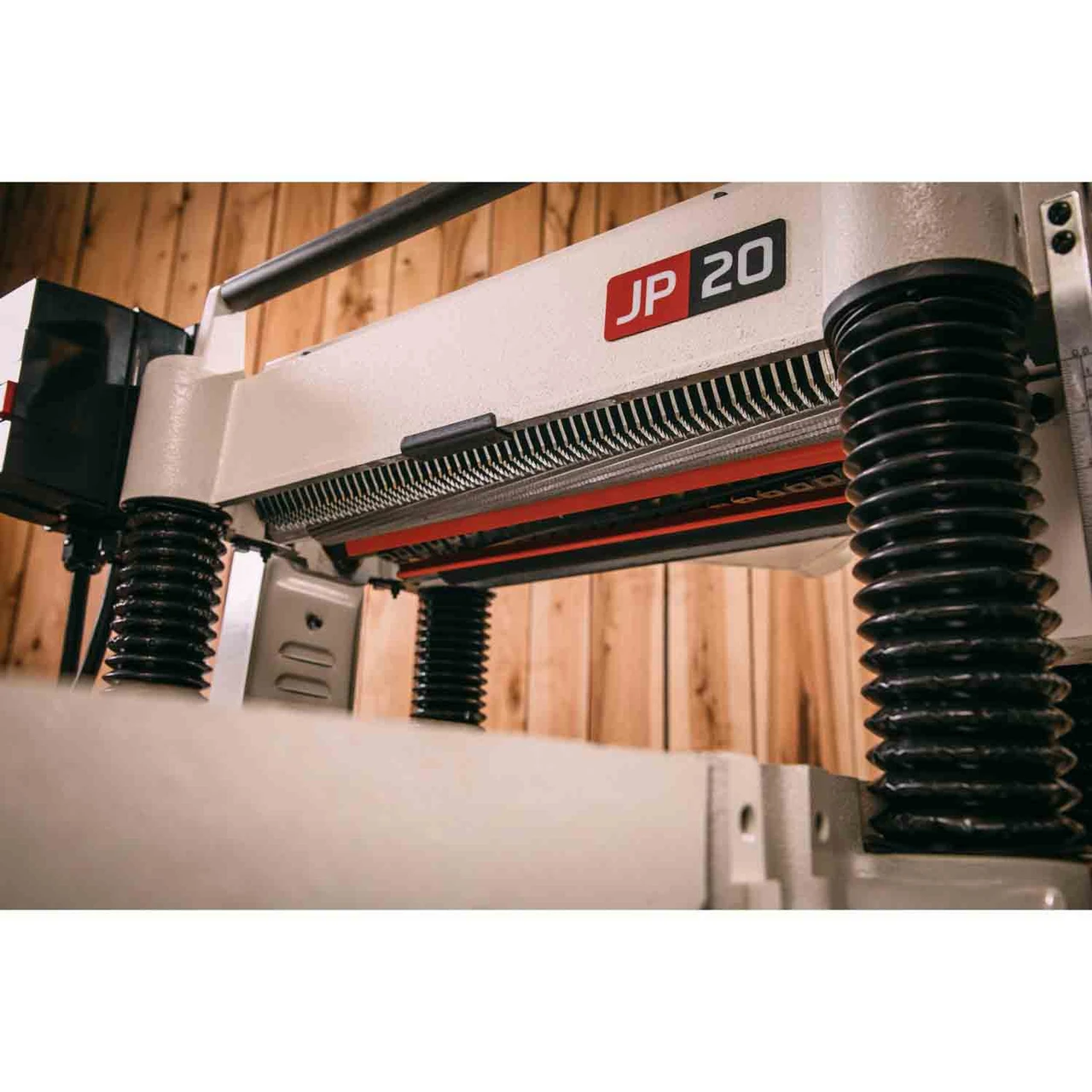

The JWP-208HH-1 Helical Head Planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box with an automatic chain tensioner allows for quick and easy feed rate adjustments. This machine means business with a powerful 5 HP induction motor combined with a helical insert cutterhead housing 92 staggered carbide knives for a superior finish and quieter cut. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron precision ground table with smooth-as-glass surface makes this planer a beautiful addition to the shop.

• 1/16" Increment height scale lets you make the most precise adjustments for fine cuts
• Cast iron infeed and outfeed tables come with the machine
• Large handwheel with positive gear drive allows for quick and accurately table adjustments
• Magnetic controls provide long life and reliability
• One-piece welded steel base offers solid support and stability
• Positive gear drive moves table quickly and accurately

• Knife Size (L x W x T) = 15 x 15 x 2.5
• Style (Type) = Floor standing Model
• Maximum Full Width Depth of Cut (In.) = 3/32
• Maximum Planing Width (In.) = 20
• Table Size (L x W) (In.) = 25-3/4 x 20
• Maximum Planing Thickness (In.) = 8
• Cutterhead Diameter (In.) = 3-3/16
• Cutterhead Speed (RPM) = 5000
• Minimum Planing Length (In.) = 6-3/4
• Number of Speeds = 2
• Motor Power (HP) = 5
• Dust Collection Minimum CFM Required (CFM) = 400
• Dust Port Outside Diameter (In.) = 5
• Motor Voltage (V.) = 230
• Prewired Voltage (V.) = 230
• Motor Amps = 27
• Weight = 765.0000
• Width = 0.0000
• Height = 0.0000
• Length = 0.0000
