Axminster, Gripper Jaws Type H for the SK80 Chuck

Product Description

Gripper jaws feature serrations on the inner and outer gripping surfaces. This particular design offers a super strong grip on end grain and in green timber. The depth of the jaw adds to the gripping power. The SK80 Gripper Jaws Type H are ideal for smaller hollow form and similar pieces. Although, as with all the Axminster chuck jaws, versatility comes as standard. The external grip is 53mm (2 1/16"), the internal 40mm (1 9/16"). These diameters are when the jaws are a true circle. However, the chuck allows a wide range of movement to accommodate any deviation. If necessary, it can grip internally 34mm (1 5/16") to 66mm (2 5/8") and externally 47mm (1 7/8") to 83mm (3 1/4"). Of course at more extreme diameters, the jaws are no longer a true circle. The SK80 Gripper Jaws Type H are also suitable for the SK100 4" and SK114 4 1/2" chucks. Made from stainless steel to protect against corrosion.

• Potential gripping range: Internal 34mm to 66mm (1 5/16" to 2 5/8")
• Potential gripping range: External 47mm to 83mm (1 7/8" to 3 1/4")
• Recommended for SK80, SK100 and SK114 chucks

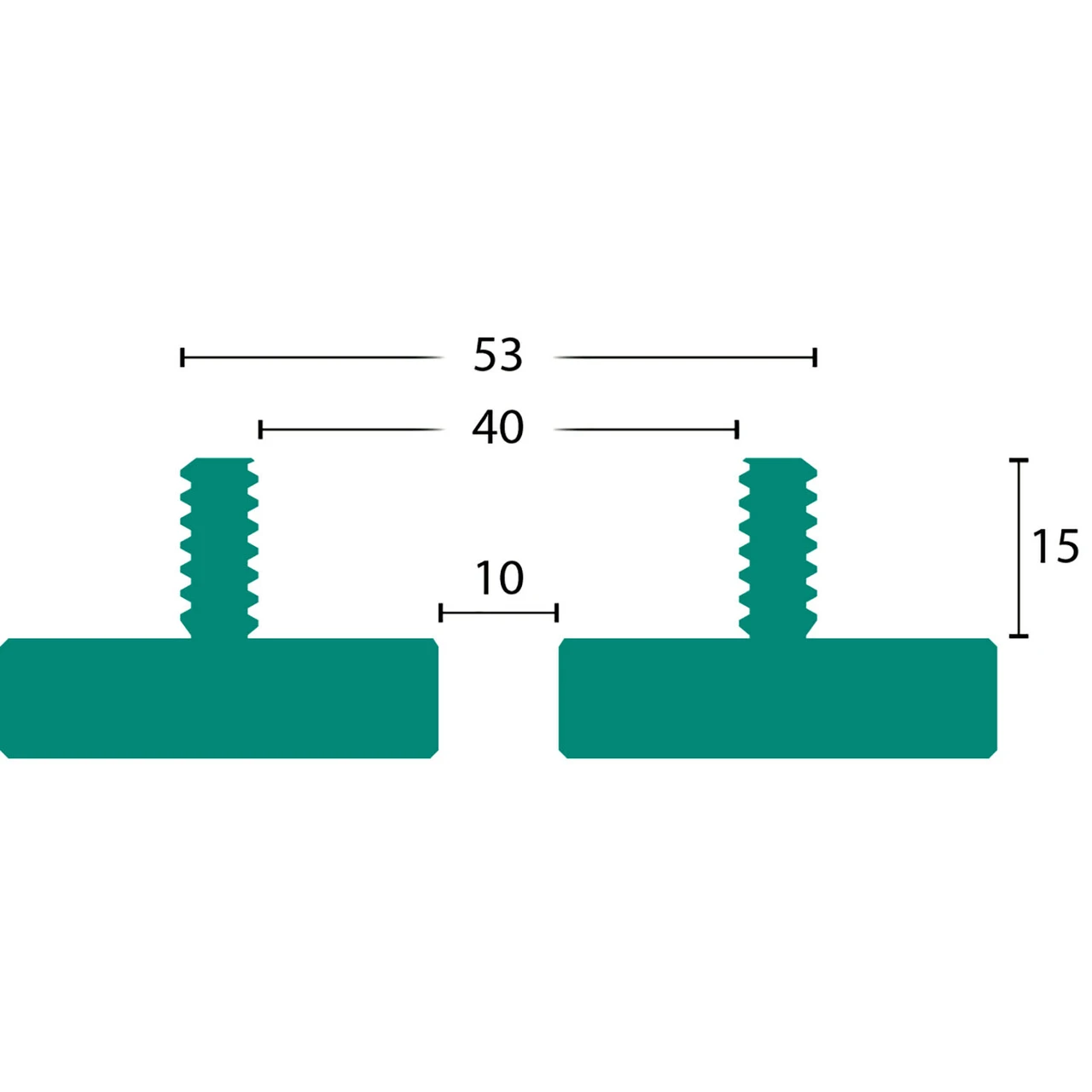

• Drawing dimensions taken when jaws form true circle
• Serrations on inner and outer main gripping surfaces
• 15mm (9/16") deep jaws provide strong, secure grip
• Made from stainless steel to protect against corrosion
• Made in Axminster, UK
• 1-year guarantee
• All sizes in inches are for reference only and are not as accurate as the sizes shown in millimeters. For best accuracy, please measure in millimeters.

• Check out the PRODUCT VIDEOS tab above to watch videos related to this product
• View our Axminster Chuck Jaws Comparison Page.



A range of super precision chucks and accessories, all uniquely designed and manufactured by those who truly understand woodturning. Precision-made in high grade stainless steel, the Chucks and their associated accessories have been developed over the years, to cover almost every situation likely to be encountered by the amateur or professional alike. In addition to chucks, Axminster Woodturning offers a Tailstock and Drive Centers, modular Tool Rests and Tools for Pen Making.
